CRNW LED Lighting, Round 3

Honestly I got almost nothing done this weekend in terms of benchwork.  Nearly all of my efforts went into other, non-model railroad tasks and then into working on the LED lighting system a bit more.  I’m running another set of boards soon, and wanted to get enough groundwork done to get the LED driver boards into this batch.

Tasks left to accomplish were as follows:

  1. Work out mounting to layout and characterize thermal/electrical parameters in operation
  2. Solve the inductive ringing problem in the LED drive
  3. Plan how lighting control would be distributed and design power control board

Task 1:  Mounting Considerations for LED Lighting

Some time back, roughly when I started benchwork construction, I found some great T-shaped galvanized steel drip edge (intended for roofing) at Lowes.  Strong due to its folded shape, light, wouldn’t rust, metal (to provide some heatsinking and protection between a potential high current short and the wooden benchwork), and cheap ($~4 for a 10 foot strip when I bought it), it seemed the ideal material.  Plus, the folded edge would reflect light back towards the layout and away from the aisles.  I put a single strip in with one of my lumber purchases, and it’s been sitting in my garage for the last four months.

Today, I cut off a four foot section of the stuff, since that matched the LED strips on my test piece.  Using a thorough coating of Loctite 300 heavy-duty spray adhesive (I’d previously tried my usual go-to adhesive – 3M 77 – and was underwhelmed), I laid out the four planned LED strips on the steel -warm white #1, RGB, cool white, and finally warm white #2.   Each strip was harvested from the original test 2×3 board, so these have been used a number of times now…

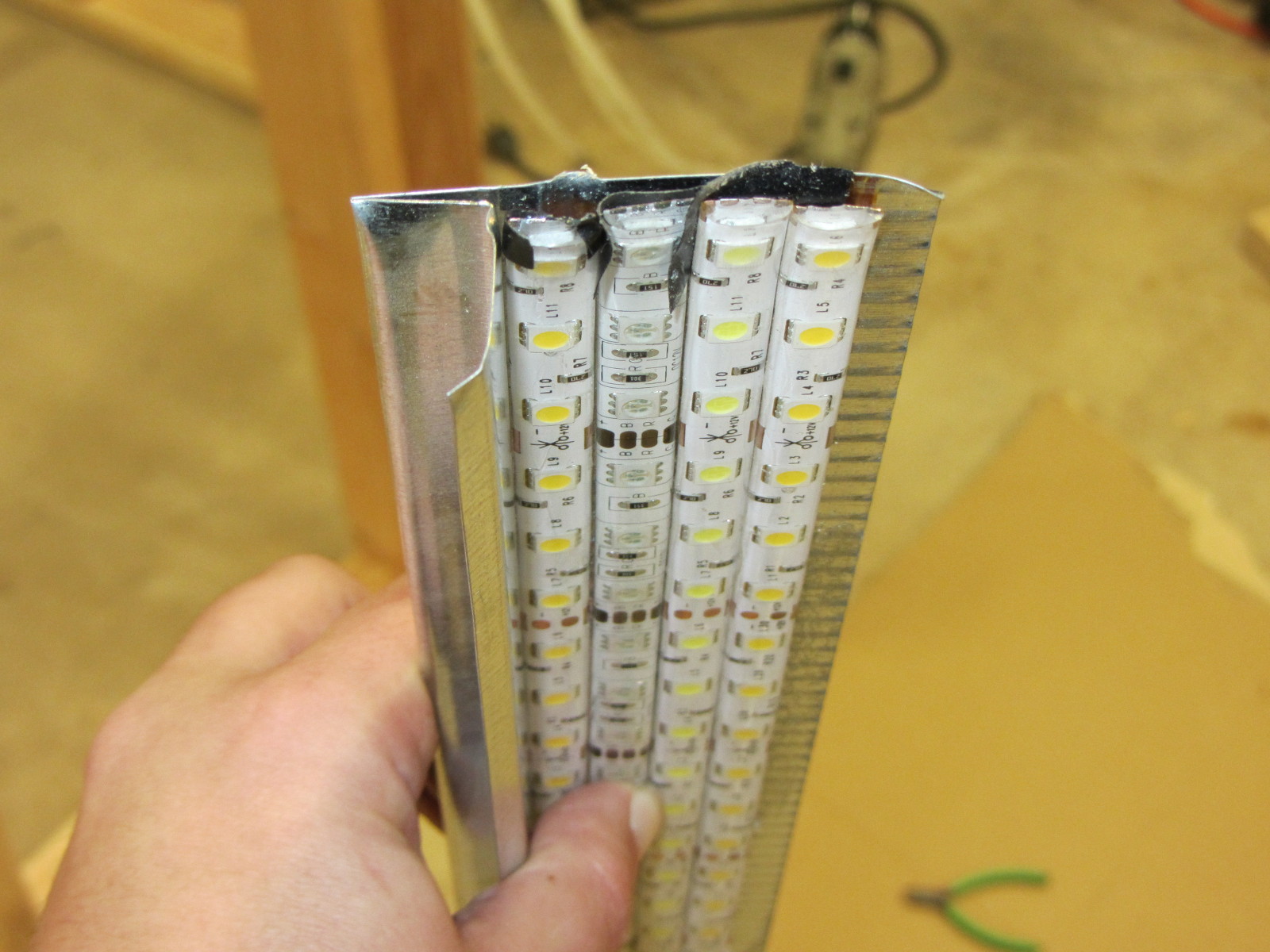

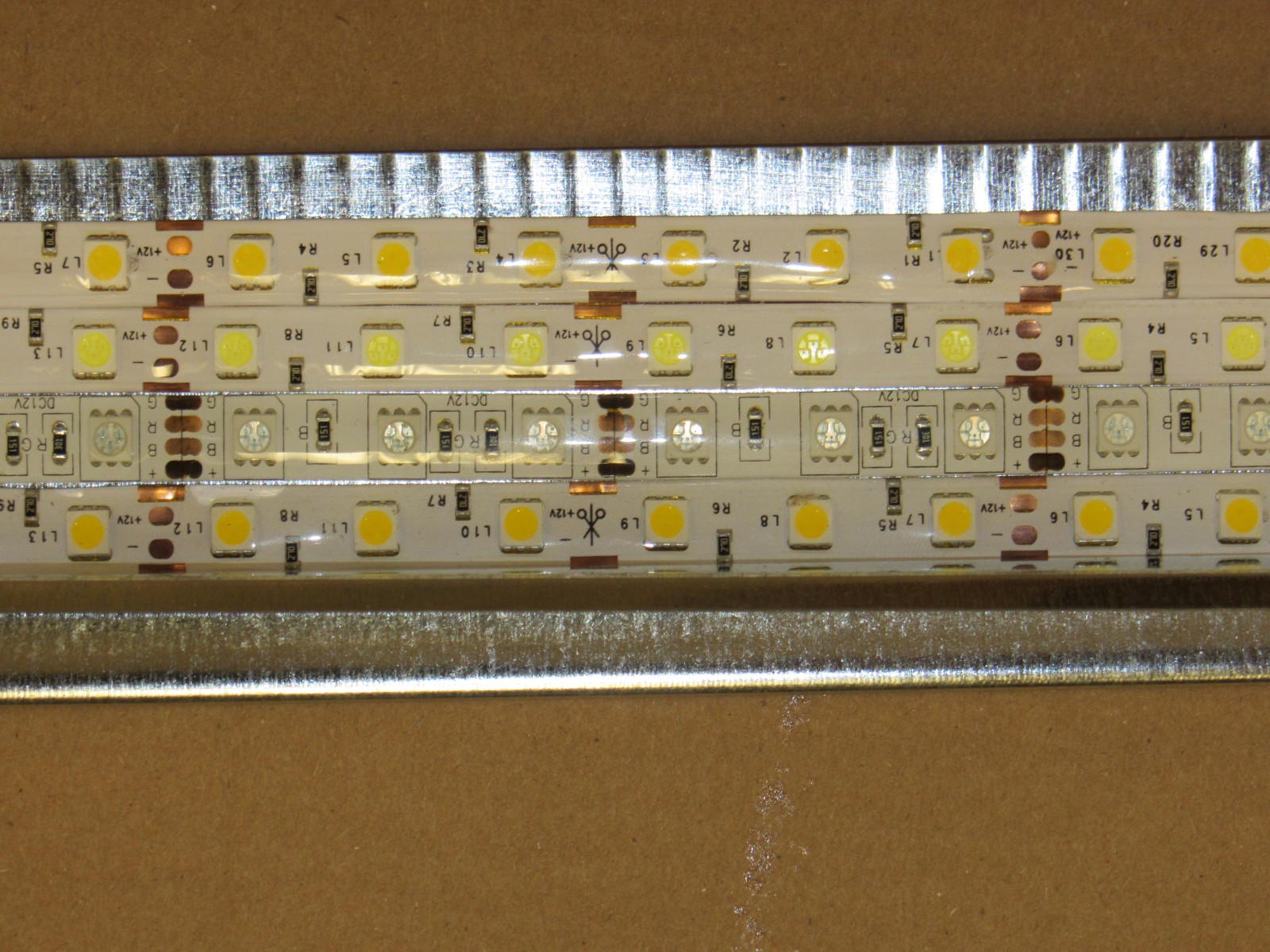

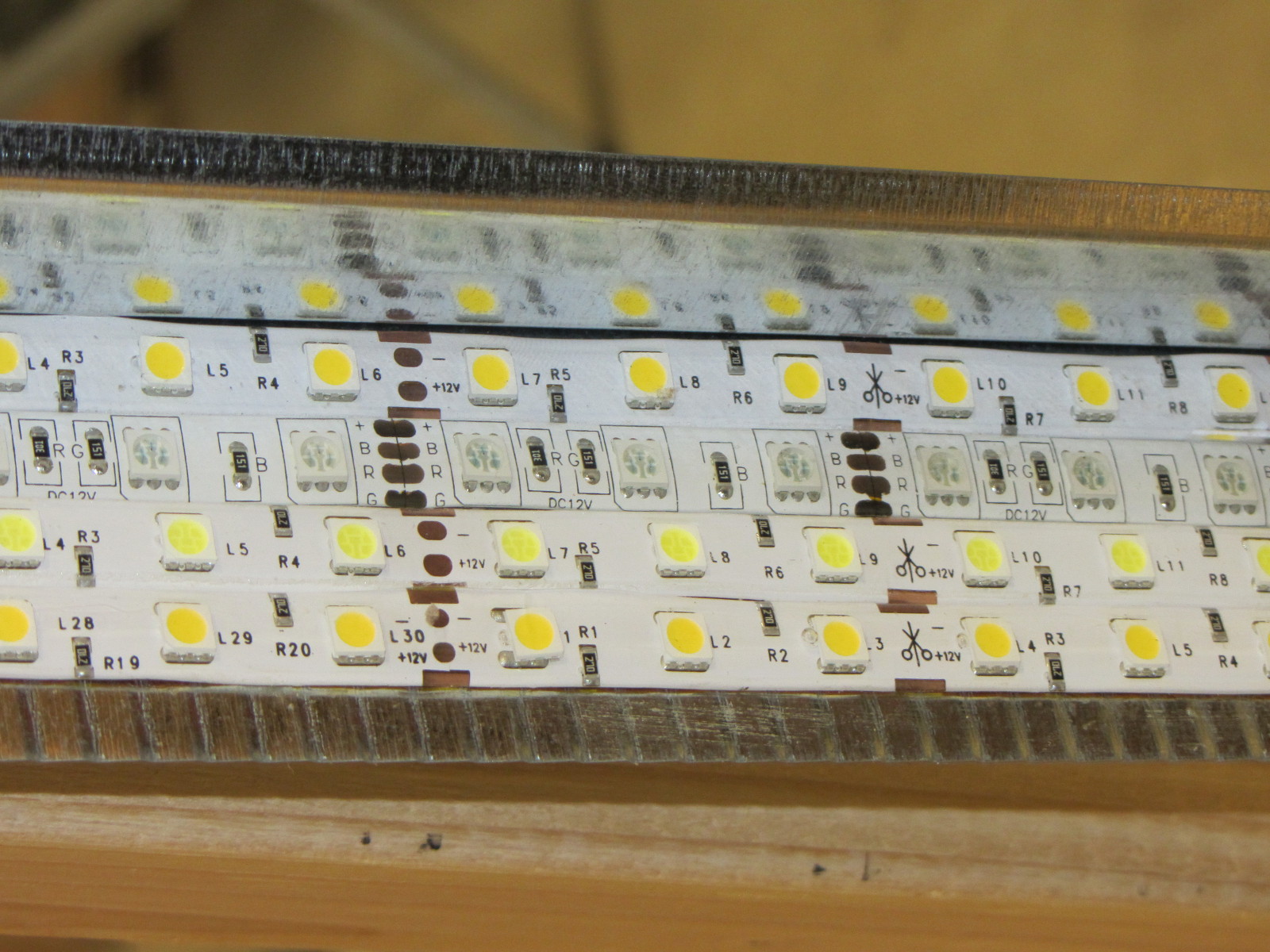

An end view, including the electrical tape used to insulate the exposed ends A look straight down The four strips - warm white, RGB, cool white, and warm white 2

With the strip prepared, I then mounted a thermocouple to the top of the steel to monitor the temperature.  Using a bar clamp, I attached it to the layout (in the usual test position, over what will become the Cordova yard someday) and powered it up with an old bench supply.  Ambient temperature at this point was about 23C (73F). Current was approximately 3A for 3x 4′ strips of white being lit simultaneously.

I left the lights alone for an hour as I did other things, so that I could see where the temperature would stabilize.  Turns out, the answer is at approximately 45C (113F).  The steel was warm to the touch, but the strips were notably cooler after an hour of running then when they were mounted to a piece of wood.  It looks like the heatsinking works!  LED longevity is closely linked with temperature, and once you pass an operating temperature of 50C, things start going downhill in a hurry.  45C for three strips running at 100% (more than I plan to run in actual operating conditions – my plan is currently at most 2 at 100%) is pretty darn good.

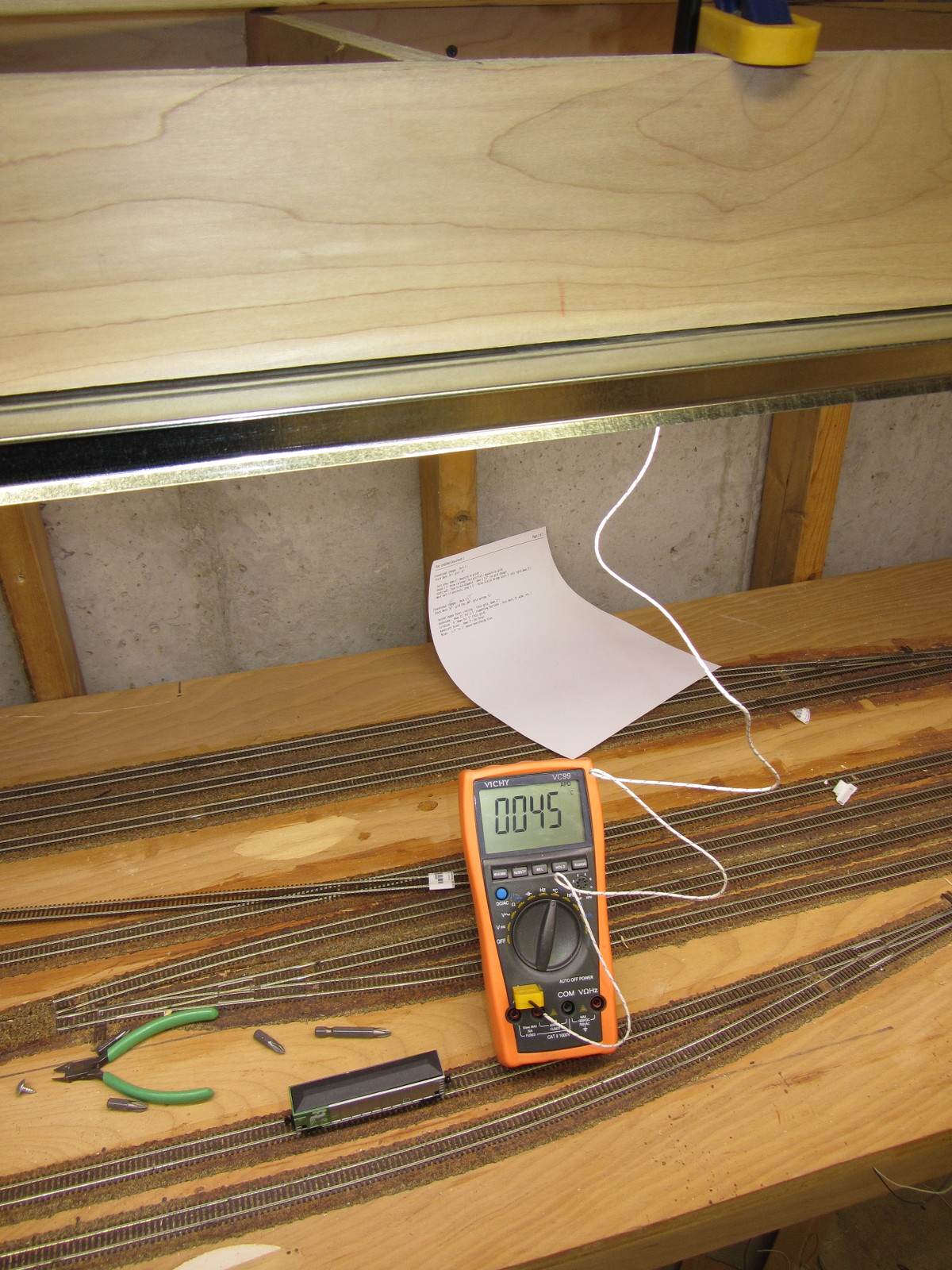

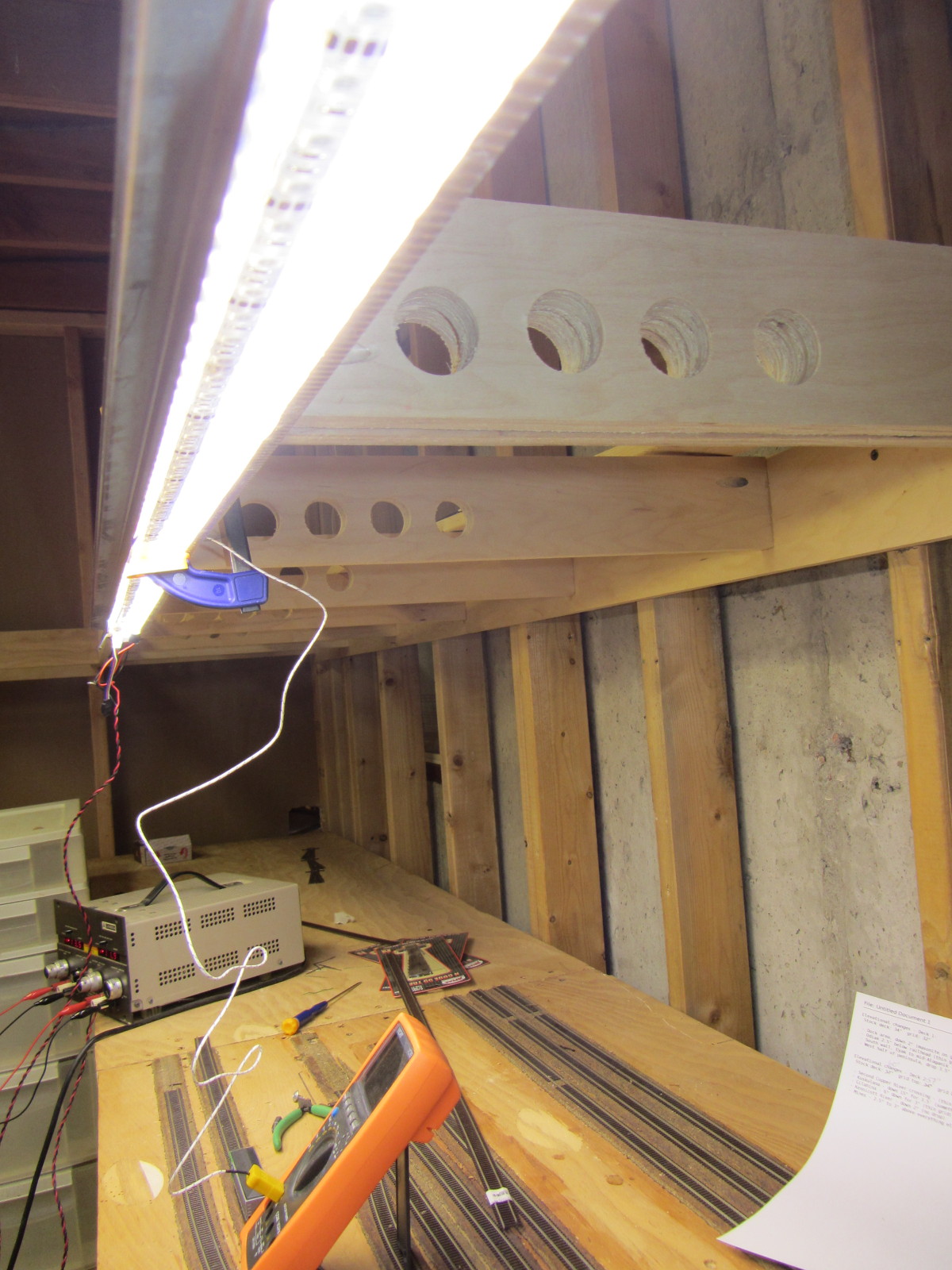

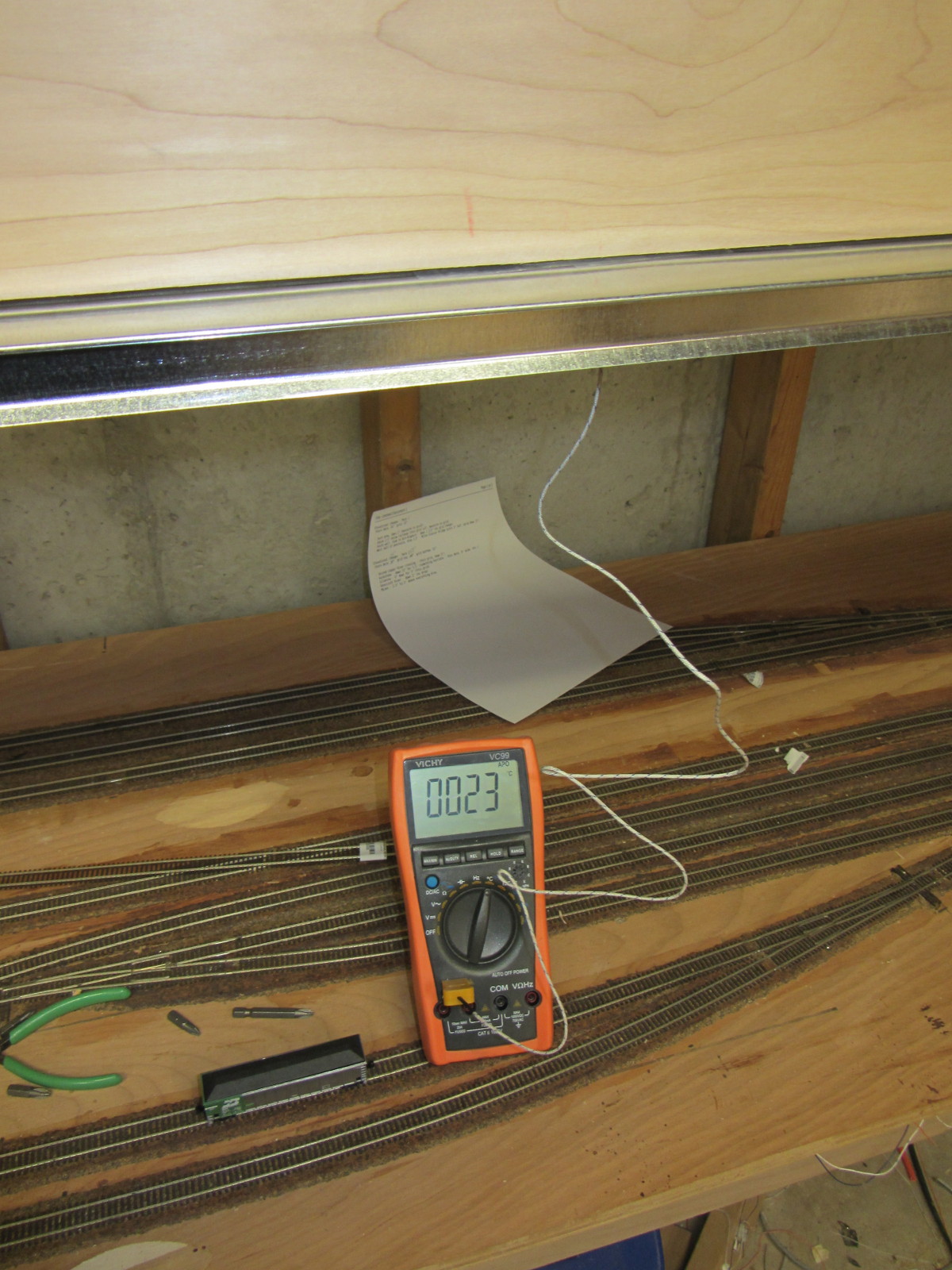

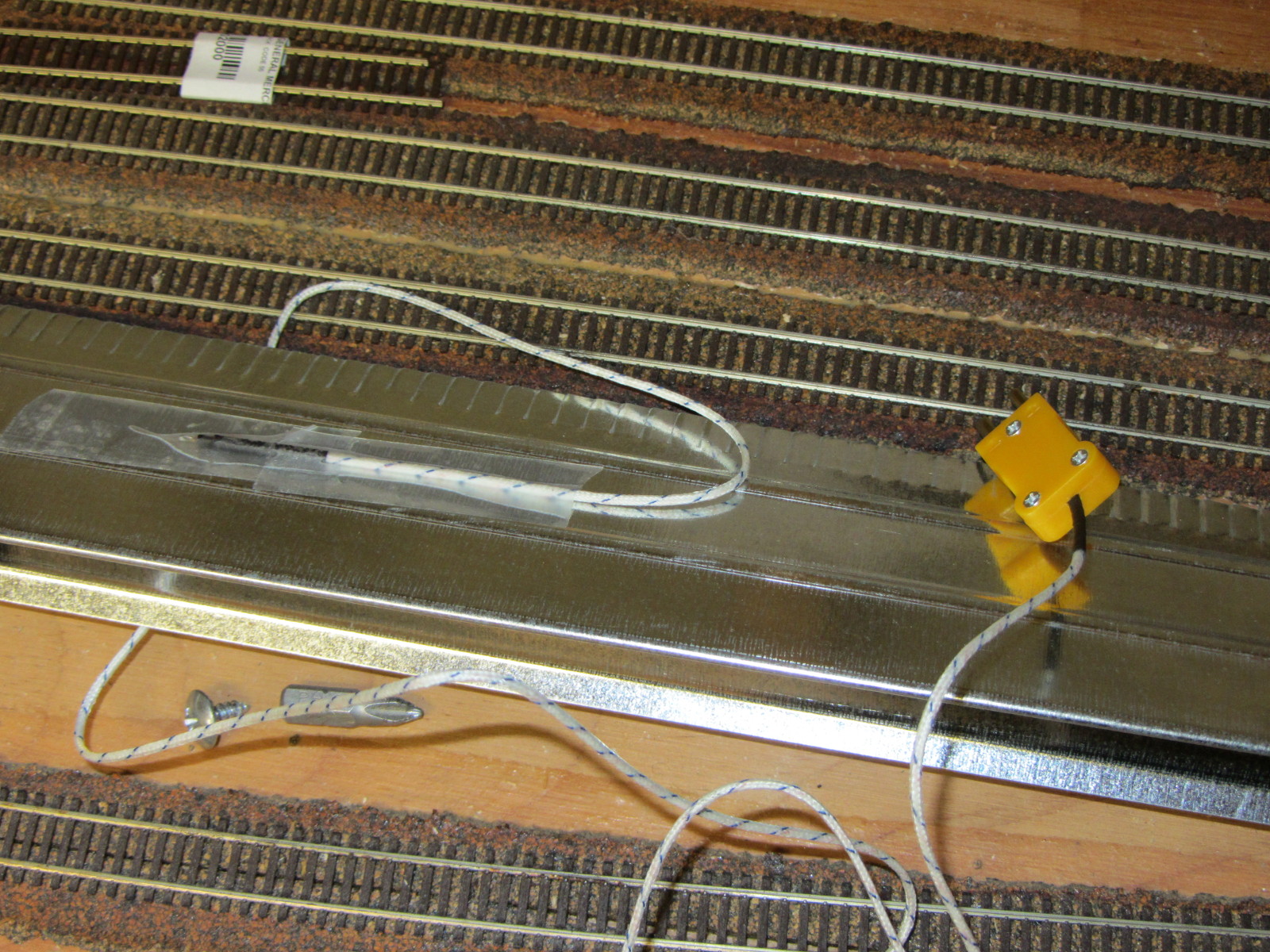

The temporary LED strip mounted up on the benchwork with a clamp.The thermocouple on the back of the steel mounting plate.Initial temperature - 23C Final stable temperature - 45C

One interesting note – the operating current at 45C had increased to 3.3A.  This makes sense – bandgap of LEDs decreases with increasing temperature.  So, with less voltage drop across the LEDs, the ballasting resistors (56 ohms total, split into two 1206 resistors – see more about this later) allow more current.  So, as a note, LED strip lights appear to have a 10% current rise over the 20C between room temperature and operating temperature.  Almost all of that additional power will be dissipated in the resistors, so it’s not even going into providing useful light.  (See analysis in the final section.)

Task 2:  Fix the Inductive Ringing

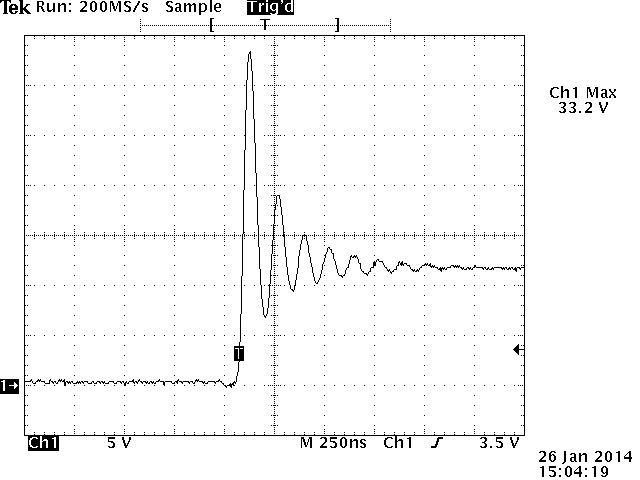

The drain side of the FET with an undamped loadWhen I initially investigated doing variable LED control for layout lighting, I noticed some reasonably nasty inductive spikes whenever the MOSFETs controlling the strips would shut off. The screen capture from my scope on the right is a pretty typical kick – the FET shuts off, and the drain side of the FET would ring up up obnoxiously high voltages.

Since I’m only planning on using FETs with a 30-40Vds rating, these spikes could easily turn into circuit-killers.  Plus, they’re likely radiating lots of electromagnetic noise that will cause other issues down the line when I have 100+ amps of LED strip lights running and switching on and off.

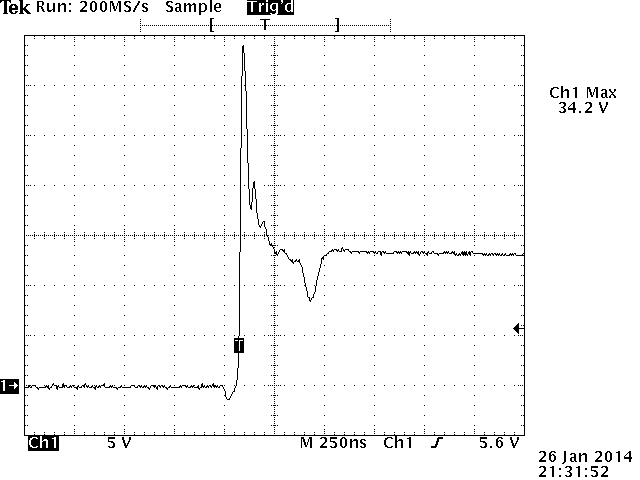

2.5A with a FR155 diodeMy initial hope was that a freewheeling diode from the drain up to the+12V rail would solve my problems.  I was operating under the assumption that my problem here was inductance in the LED lines, and that if I gave the current somewhere to go, my problem would go away.  At low currents, it looked promising, but as I started pushing 2-3A through my test setup, I got the waveform on the left.  Better (less ringing), but still with the 30+V spike before the diode got going.  All I had on hand for reasonably quick diodes were some old FR155s.  While great at reverse recovery time, I can’t find a spec on how fast they go into forward conduction.  Regardless, a decent Schottky diode should beat them hands down.  I just don’t have one to try.

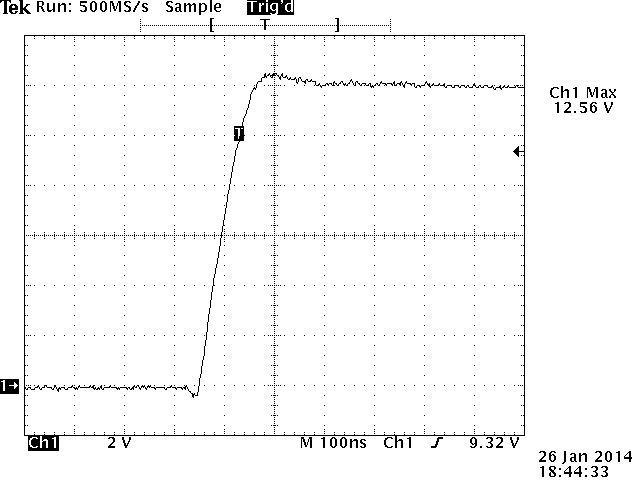

22nF damped from drain-sourceAn alternate approach I tried was to damp the system by applying a small capacitor between the FET’s drain and source.  As little as 22nF was enough to significantly clean up the waveform, and 0.1uF damped it out completely.  I don’t like the idea of a capacitor in there, though, because this will almost certainly need to be quasi-matched to the parasitic inductance in the lights.  I’m going to try a faster diode first and see if that fixes my problem.  If that doesn’t work, however, we’re back to some sort of RC snubber circuit.

Task 3: Plan a Lighting Control Scheme

Safety in designing this light system is paramount.  Given that the layout will consume at most ~150A of current to run the lighting (at 12V, but 150A is still a lot of I2R heat in any short or questionable connection), fuses in all the right places are a key design feature so that any failure doesn’t end catastrophically.

Per measurements taken at steady-state in the test fixture, any of the white strips are going to take 0.275A/ft at 45C.  The RGB strip will need approximately 0.1A/ft for each of the three channels lit.  So, figuring on an absolute maximum of three full strips (all three whites) on at any given time, I’m looking at 0.825A/ft maximum.

My initial plan had been to use larger modules, controlling as much as 30A through a single control board.  However, that means larger FETs, larger freewheeling diodes and snubbers, and larger wires everywhere, since any potential short may have to soak up 30A @ 12V until the fuse goes.  Given our 0.825A/ft metric, a 30A module would feed ~35 feet of layout lighting.  The heavy wire that I would need to handle any possible shorts over such lengths quickly showed this as an impractical approach.

If I used the 10ft length that the steel flashing comes in as a module length instead, that’s 8.25A per module, maximum.  That’s nicely under a 10A fuse by a decent safety margin, and most wiring that I would use could handle 10A for a short overload period until the fuse went out.  (Mini-ATO blade fuses like I’m considering using will blow in <0.75s at 135% of their rating.  So 13A would take it out in less than a second.)

My current plan is modules for every 10ft section, with one single input fuse of 10A.  Each board will then have 6 N-channel FETs (likely 3x AO4882 duals), 6 FET drivers (likely MCP1416s), and six optocouplers, along with dual RJ45s for the control bus (one in, one out).   A single Cat5 cable will run around the layout, delivering signal ground and 6 light PWM channels from a main lighting control board to the optoisolated inputs on each booster node.

I have the schematic done, but it’s already pushing 2300h and I’m tired.  Have to go to that real job tomorrow, so I should probably get some sleep and put the board off for another day.

Addendum:  LED Strip Lights and Voltage

As sort of an interesting side research project, I decided to investigate more about the relationships in LED strip lighting between input voltage, power dissipated in the two ballasting resistors, and power actually delivered to the LED lamps themselves.  Some of my discussions earlier in the day with a friend had made me wonder what the relationship really was between these three things.

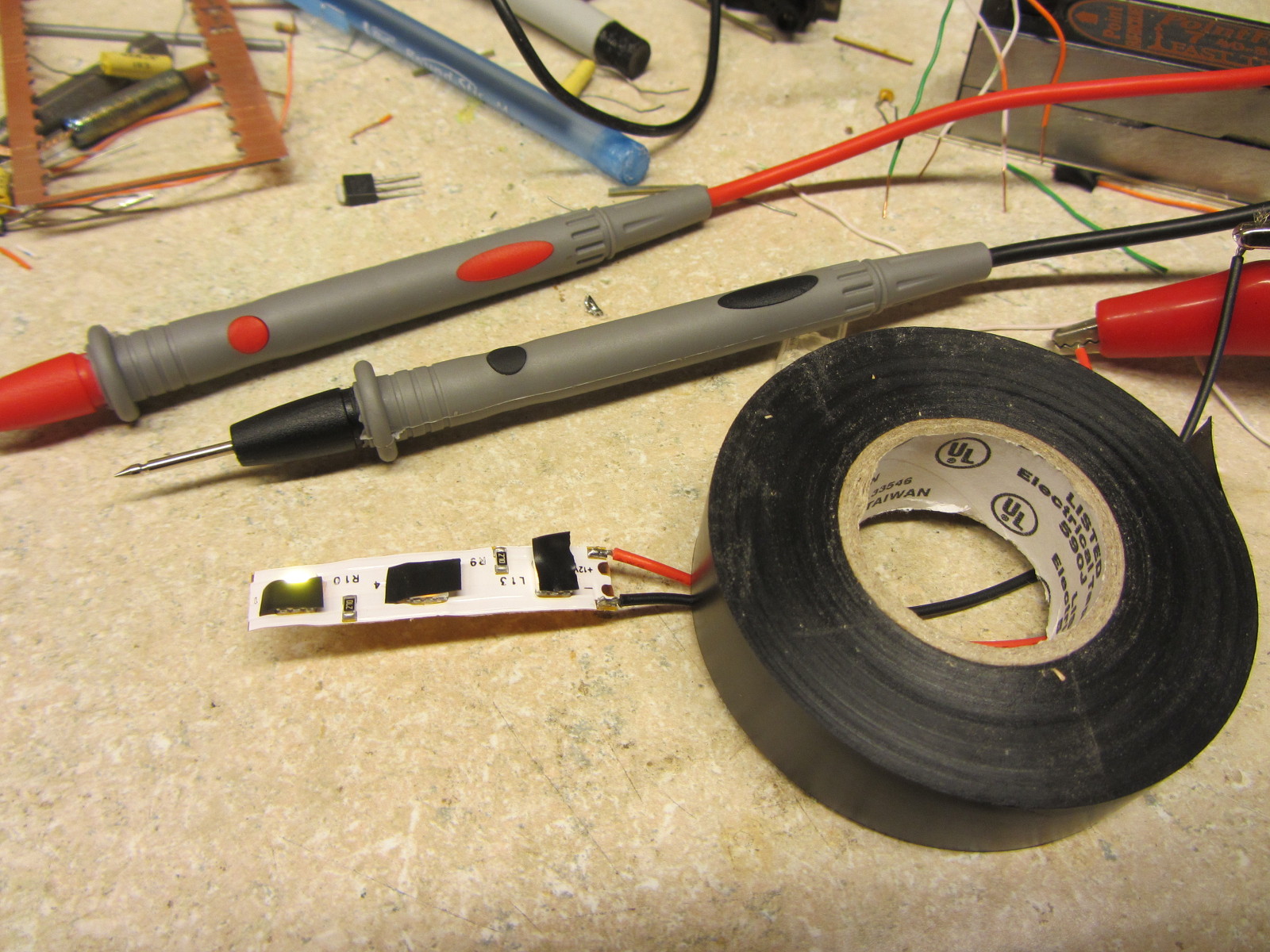

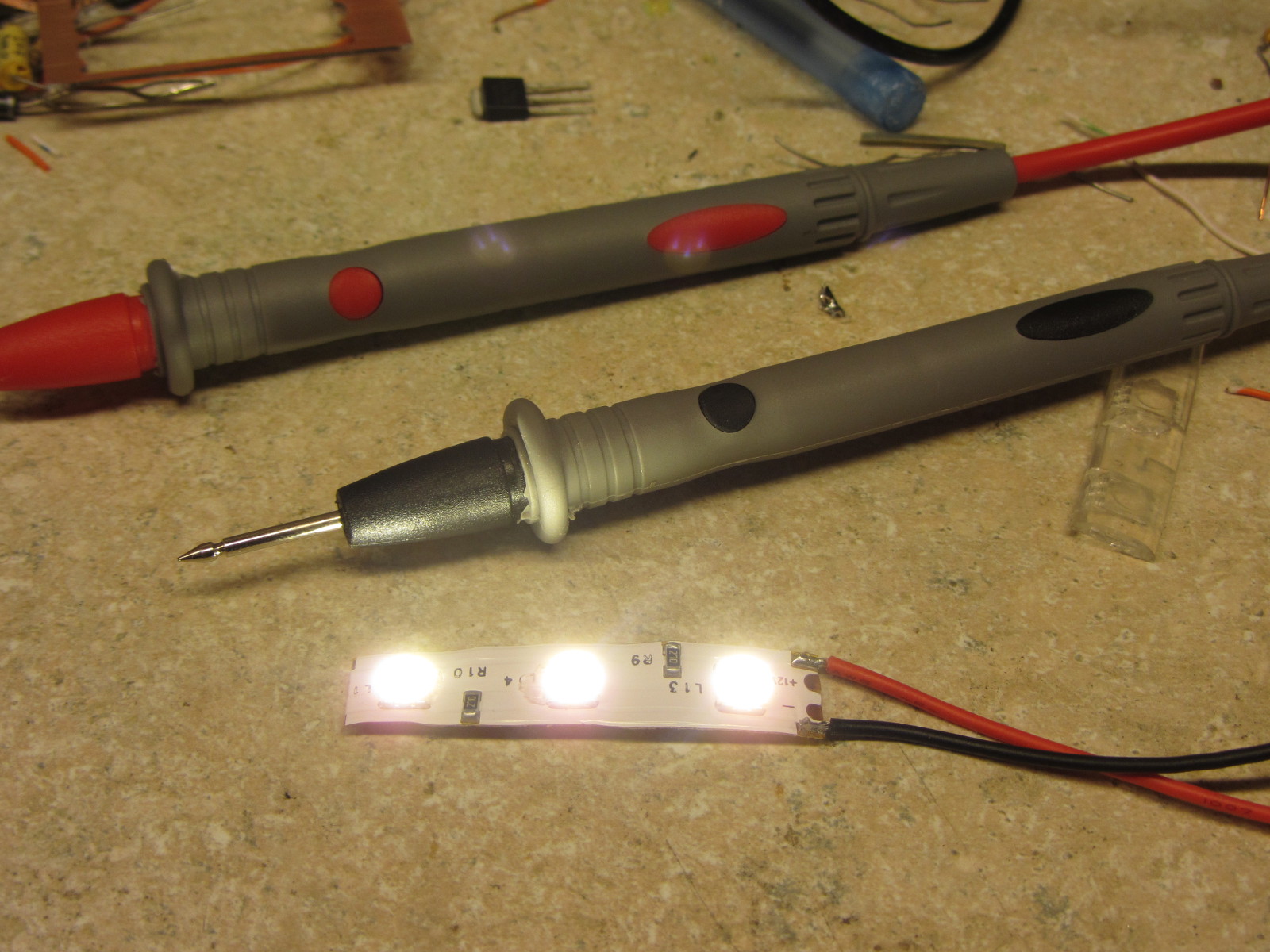

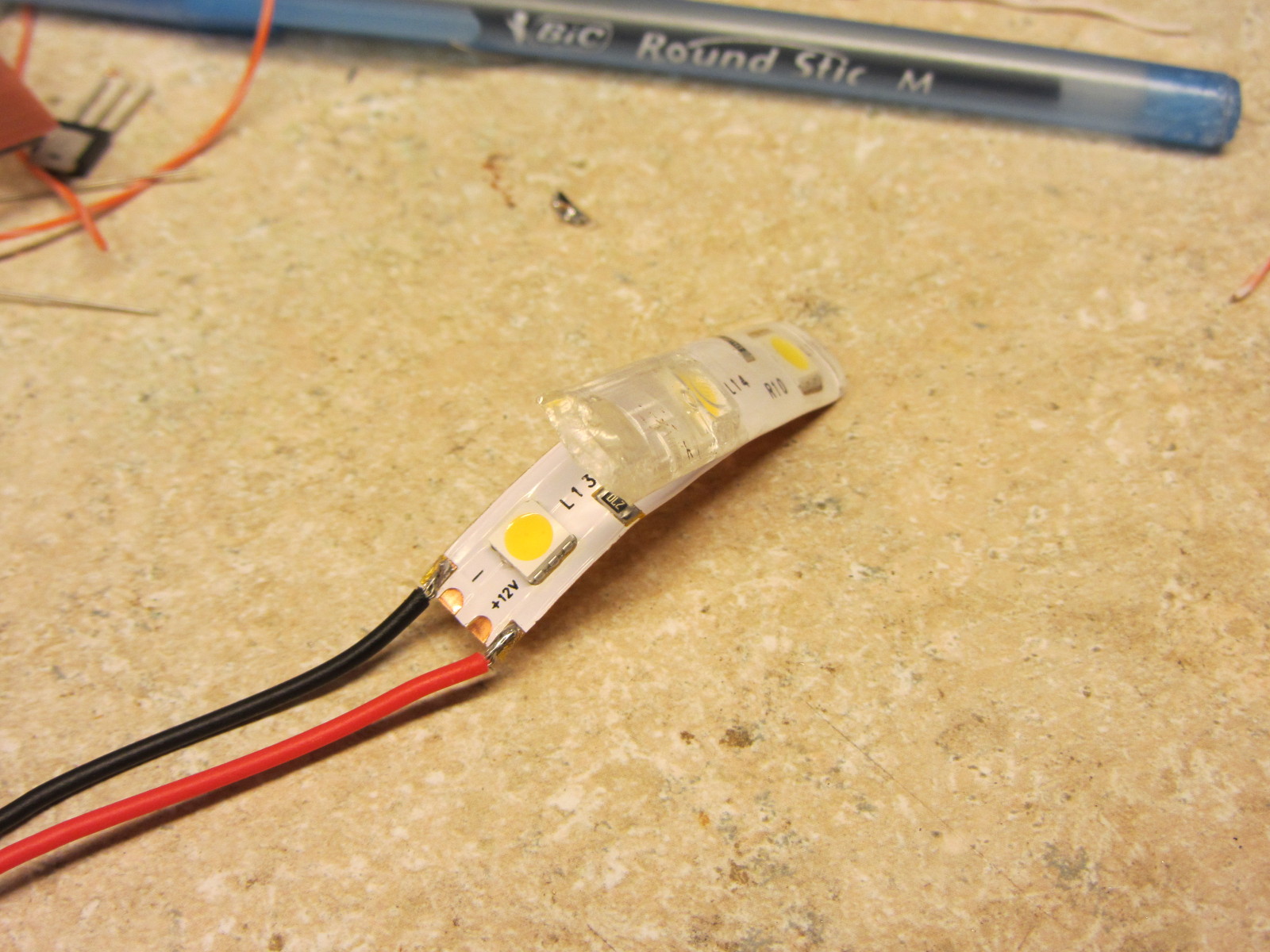

Step one was to just cut off a piece and decapsulate it so that I could get probes right on the pins.  Not really that hard – with a little encouragement, the coating peeled right off.  I then powered it up and realized that having three death rays shining in my eyes as I was trying to probe was going to be a real problem.  So, I used a trick I learned long ago when dealing with warning lights on cars that shouldn’t be on but inexplicably were: grab the electrical tape and – poof – no more annoying light!

led-strip-decapsulate led-strip-owmyeyes led-strip-better

Internal construction of these strips (nominally rated 12V) consists of a 27 ohm, 1206-package resistor (rated for 0.25W of dissipation) between +V and the first LED, then three LEDs in series (each “LED” being a 5050 package with three LED die inside in parallel), and then another 27 ohm resistor to ground.

Procedurally, it was just a matter of punching each voltage into the power supply, measuring the voltage across one of the resistors, and plugging the result into a spreadsheet.  Given the input voltage and voltage across one resistor, I could calculate the current through the circuit, and thus the drop in both resistors and consequently the power that must be dissipated in the LEDs themselves.

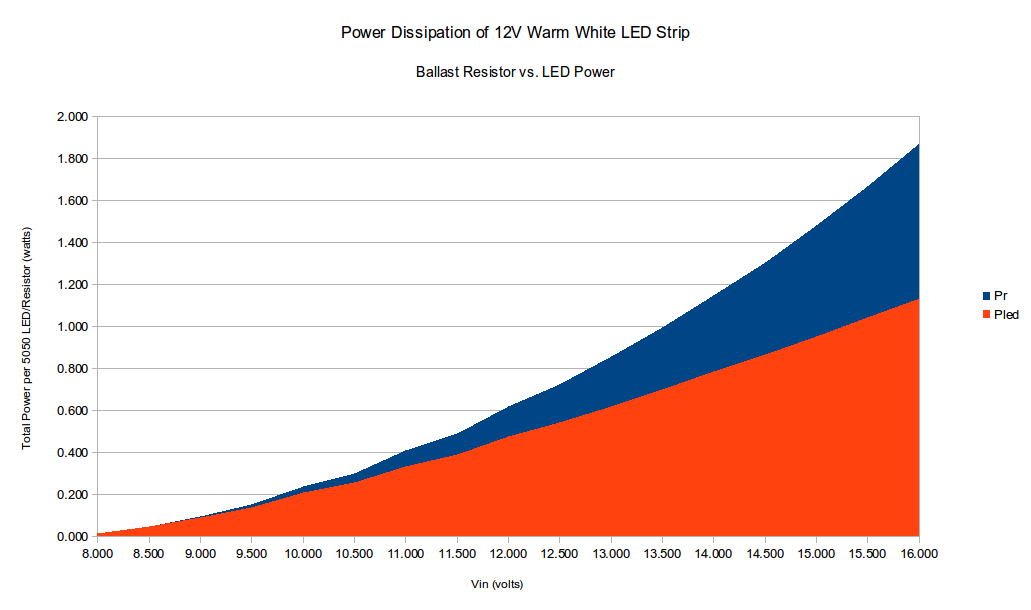

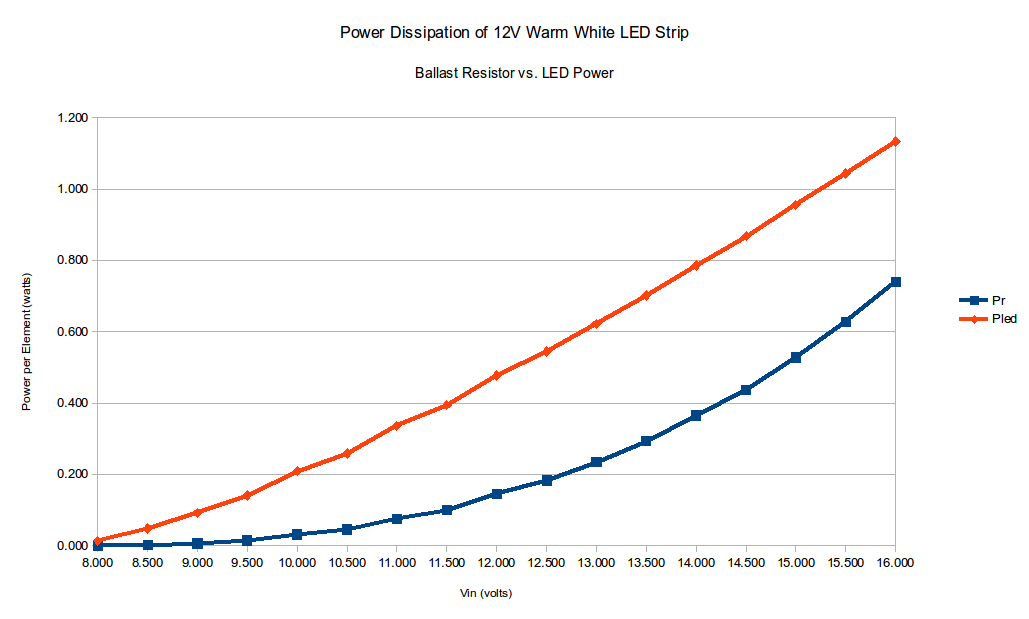

Here’s a pair of graphs of the results.  The first is just power burned in each type of component – blue being resistors and orange being LEDs.  In the second graph I stacked them, so that you can see how large of a percentage of the total is burned off as unproductive ballast resistor losses at high voltages.

Power dissipated in the resistors vs. the LEDs for various input voltages A stacked graph of resistor/LED power, to give you a better idea of their relationship as part of the total draw

It really makes me wish for a constant-current design, but I realize the additional complexity that would entail.  Cheap constant-voltage LED strip is cheap – custom engineering my own is expensive.  Darn.

Framing Completed

As of earlier this afternoon, I’ve actually completed all of the 2×4 framing that will hold up the CRNW.   Now I need to complete the grid and roadbed, and then I can get down to fun stuff like trackwork again.

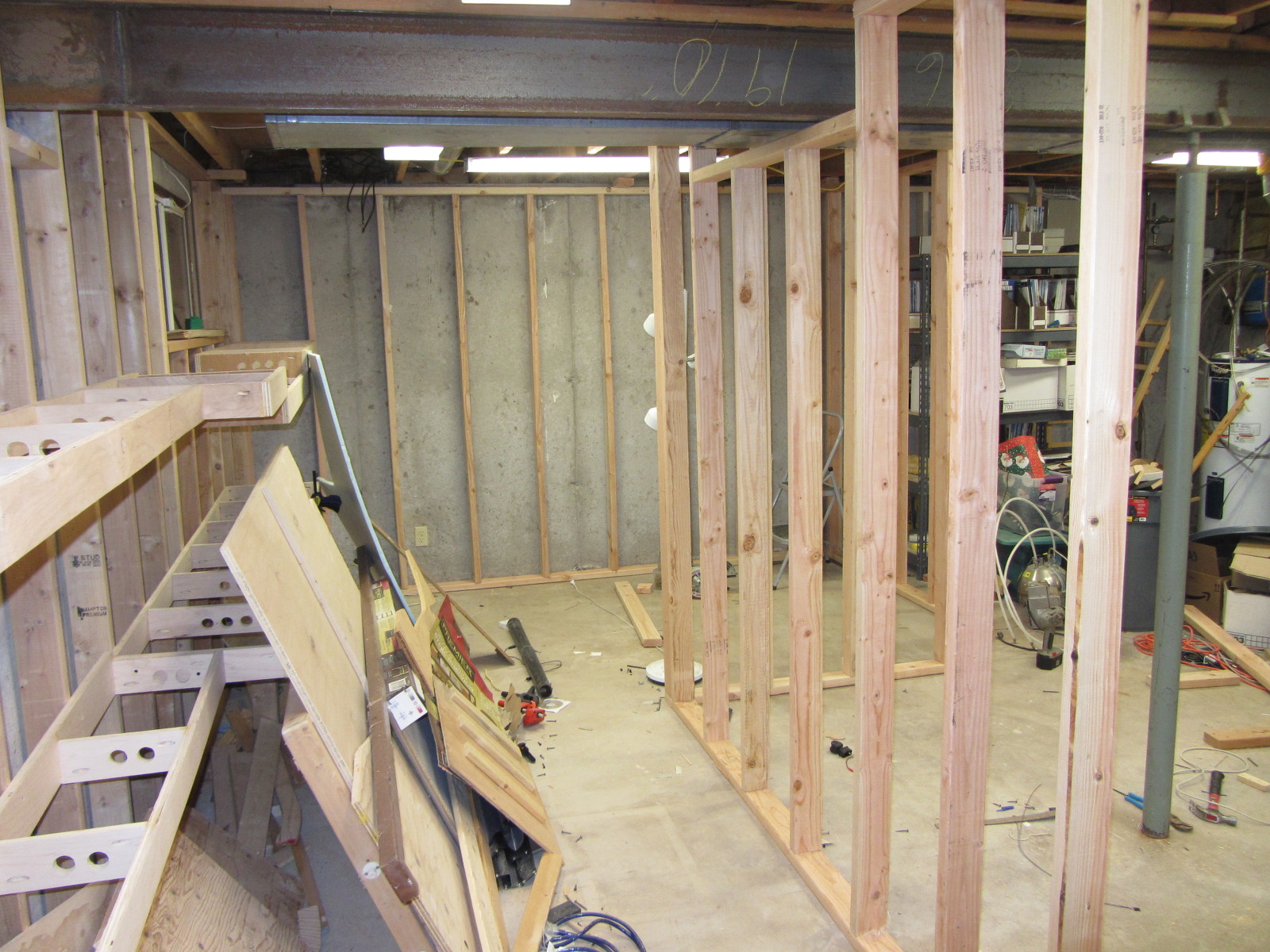

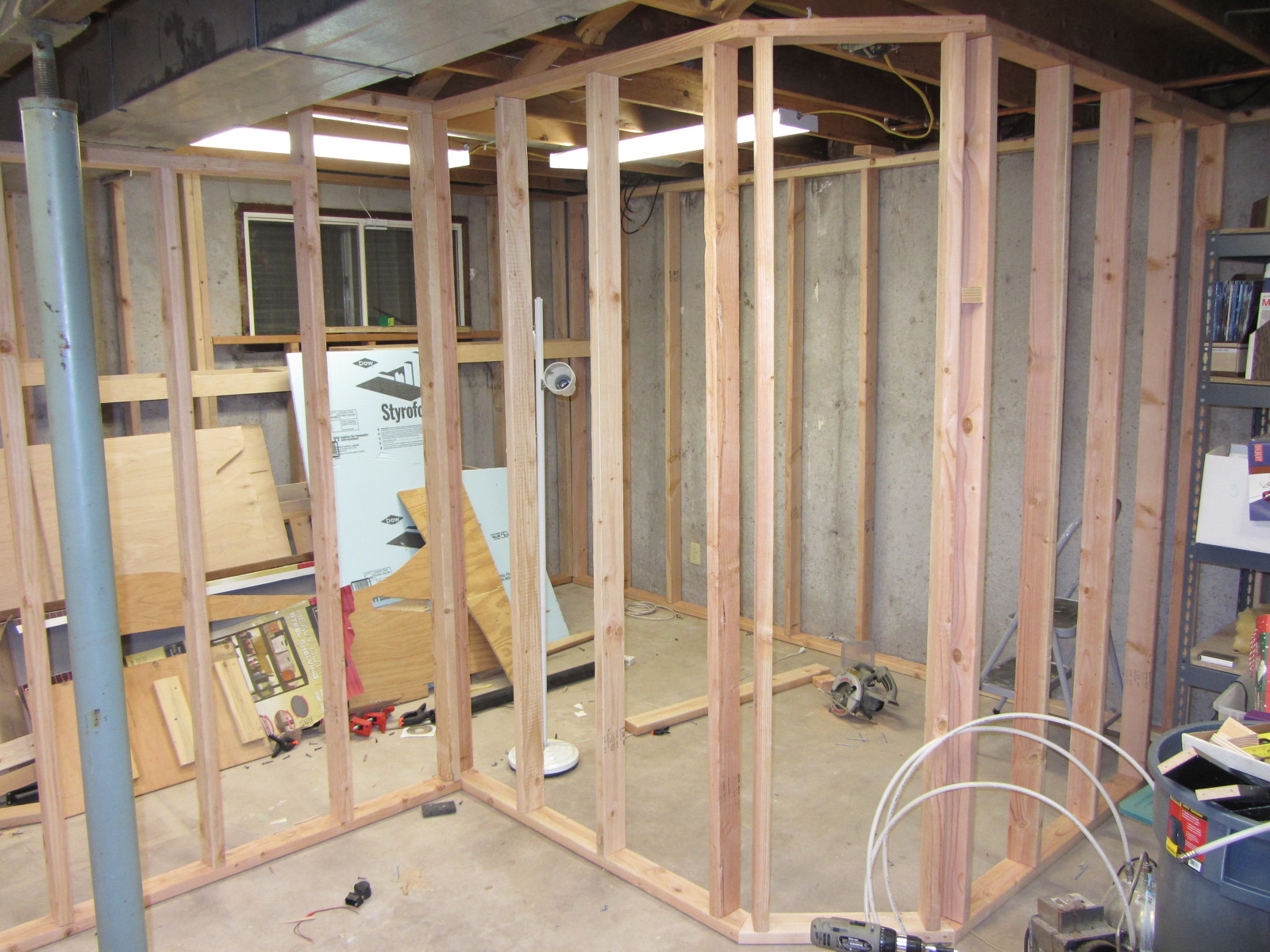

The first shot is looking at what will eventually be the Chitina Yard on the top level and Abercrombie Canyon on the bottom level.  The second shot is looking down the long straight-away, with Gilahina on the top rear, Eyak on the bottom left rear, Alaganic on the bottom right, and Strelna on the top right.

The next problem is to either use or junk everything in my extra lumber pile.  I had to move it up against the completed grid in order to install the framing, but now I need to either use it or junk it as it’s in the way.  Once I get that solved, then I’m nearly out of ripped dimensional plywood lumber, so I need to make more.  The problem is that it’s damned cold outside in the winter, and as you can see, there’s not much room to run 4’x8′ sheets through a table saw in the basement anymore.

crnw-framing-complete-1 crnw-framing-complete-2

Smells Like Progress

While not feeling the greatest this weekend, I resigned myself to the basement and building benchwork.  As a result, the gridwork is now in place for Cordova-Eyak on the bottom level and McCarthy-Gilahina-Chokosna on the upper level.

Included in the upper level is the first major piece of depressed grid that will accomodate one of the four big bridges I plan to model  – the Gilahina Trestle.  (Photo linked from Don Bains’ Virtual Guidebooks site.)  The other three big bridges being the Miles Glacier / Million Dollar Bridge, the third Copper River crossing, and the Kuskulana Bridge.)  The current version is actually the second trestle – the original burned in 1916 and was replaced by the one we have today.  The structure is ~880 feet long and ~90 feet high on a ~15 degree curve (radius ~440ft.), with six piles per bent and extensive cross-bracing.  Today, it survives alongside the McCarthy Road in a deteriorated state.

For my proto-freelanced version of the CRNW, though, there’s simply no plausible way the trestle would have survived in service to present day.  A 100 year old high wooden trestle is just not up to the passage of heavy ore trains and 200-ton locomotives multiple times per day, no matter how well built or well maintained it may be.  Plus, the trestle forms most of a very sharp curve – much sharper than any reasonable mainline standard.  However, it’s such a stunning visual element along the line, and one that many people who have visited the area are familiar with, so I also can’t leave it out.  My solution is that the mainline will pass by in the foreground, atop a modern deck girder bridge constructed as part of a 1960s-70s era line change (exact date in alternate history to be determined), while the old abandoned trestle remains in the background.  Like many things in the wilderness of the far north, the old is often left just because it’s not economical to tear it down.  Plus, in this case its historical significance to the area in addition to its site within the the Wrangell-St. Elias National Preserve would lend to its preservation.

I’ve had to scale the Gilahina Trestle just a bit.  While 880′ in length, it’s only about 650′ on a straight line between the ends due to the sharp curvature.  (Distances estimated from aerial photographs.)  At full size, it would be approximately 4′ long and 6.75″ high in N scale.  I plan to keep it full height – hence the drop section to give me an extra 3.25″ to play with, but compress the length to about 3′, or 480′ in full size.

If anybody has measurements or plans for the Gilahina Trestle, I’d greatly appreciate hearing from you.  Otherwise I’ll have to head back north and spend some quality time with just me, the trestle, a tape measure, and an ultrasonic range finder.

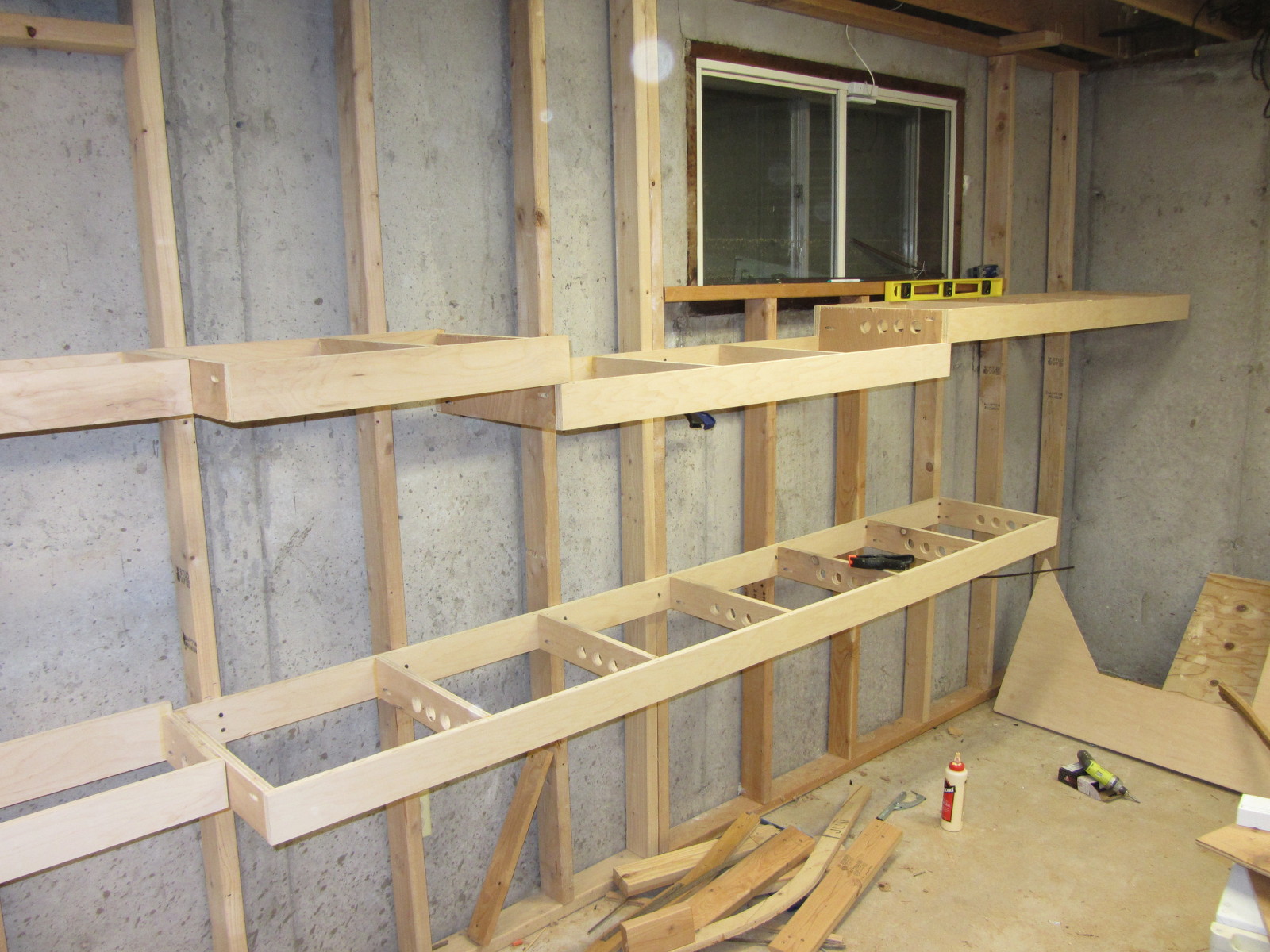

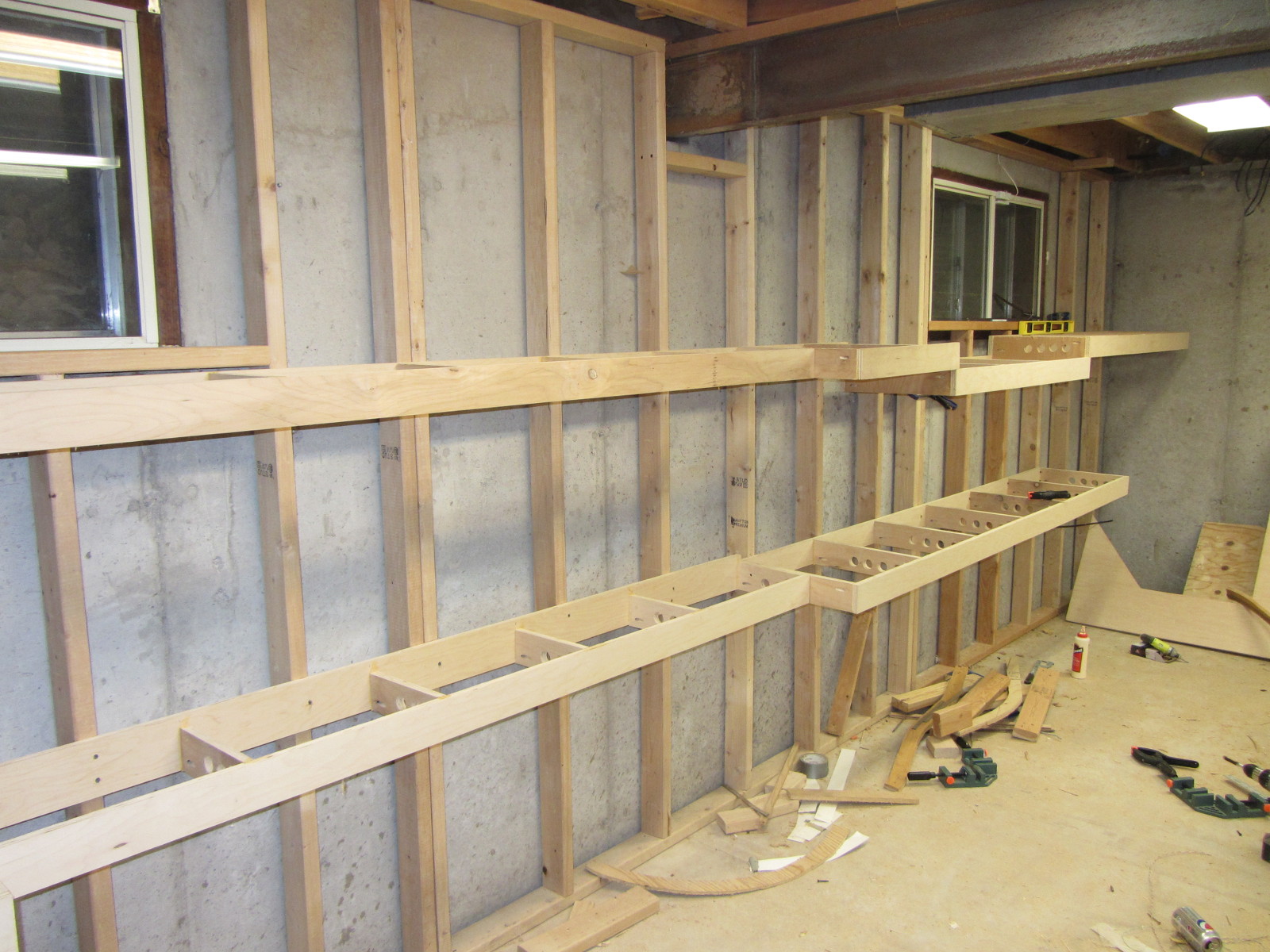

Here’s a couple shots of the new benchwork grid, including the drop section for accomo

benchwork-eastwallbenchwork-eastwall2

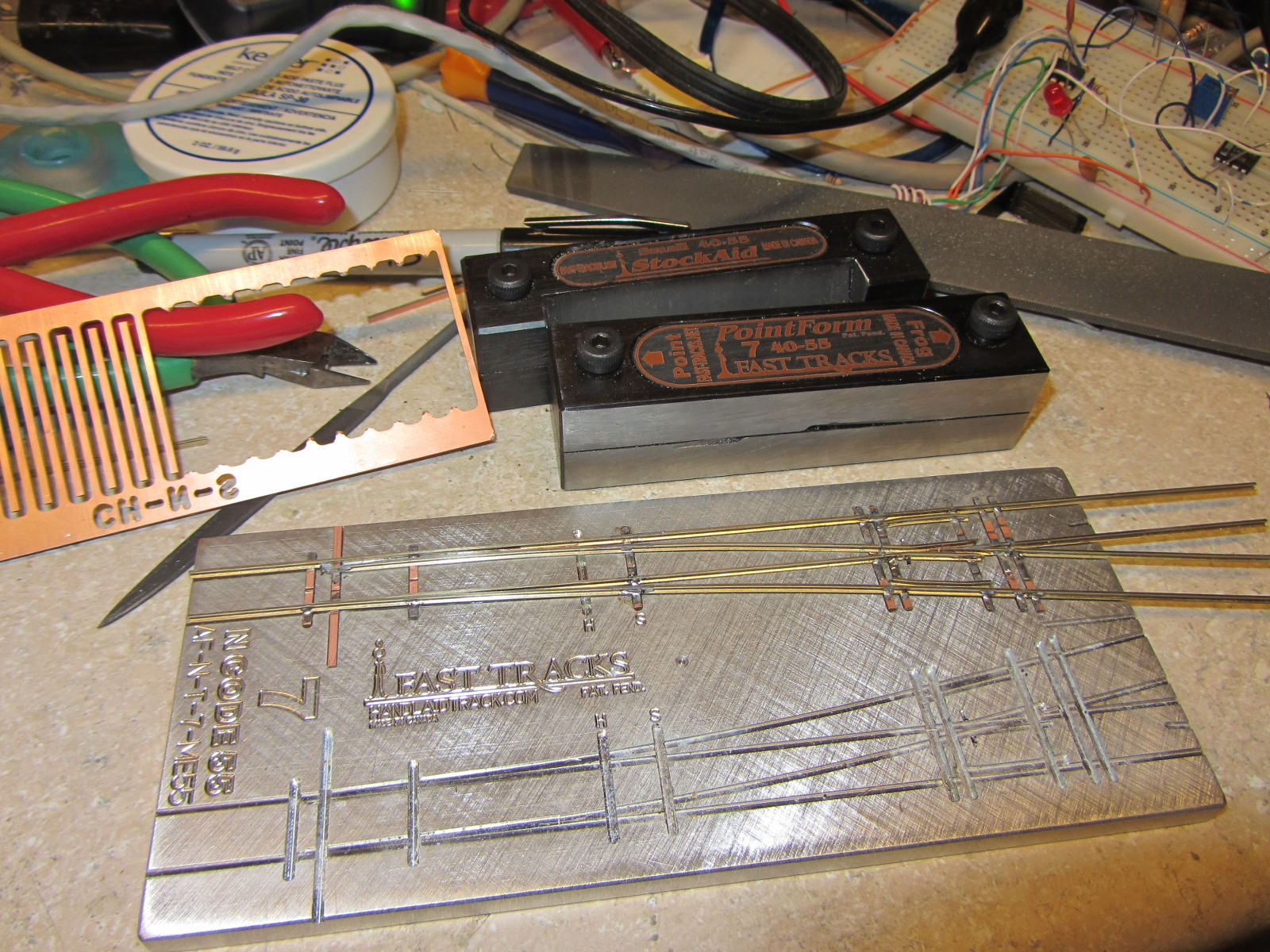

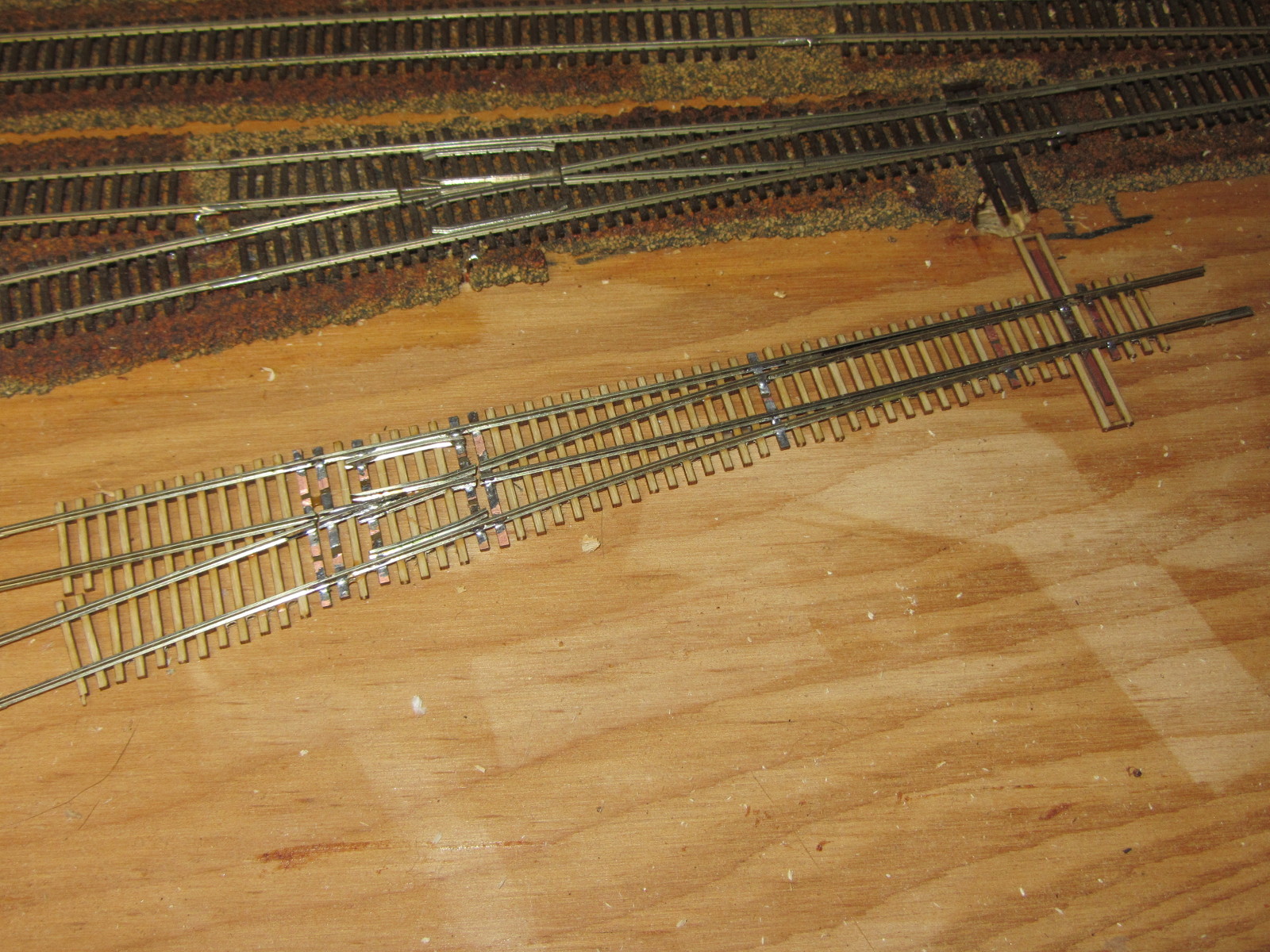

In addition, the Fast Tracks jig finally arrived, and I’ve been practicing at building turnouts.  So far, I’ve built two – one right and one left – and I don’t think I’ve quite gotten the hang of it yet.  Both are usable, but not quite as perfect as I’d like – particularly in the area of getting the point rails just right and making the throwbar move flawlessly.  (I seem to always get the point rails stuck on the stock rail when soldering them, and can never get it deburred once I separate them.)  Also, the FT#7 is a bit bigger than the Atlas #7, leading me to believe the Atlas #7 is really more of a #5-#6.  I’ve put my second attempt next to an Atlas unit so you can do a size comparison.

fasttracks first-scratchbuilt-turnout

Until next time…

Happy New Year!

Like any good model railroader, I spent New Years Day in the basement working on the layout.  I was hoping my Fast Tracks jig would arrive on New Years Eve, but alas, it did not.  So, I reverted to working on lighting, benchwork, and some electronics design.

The good news is that the entire layout room now has proper room lights – nine fluorescent 4′ dual T8 fixtures, to be exact.  It makes it much less of a dingy hole in the ground and much more a presentable layout room.  Now if only the construction disaster would clean itself up…

As far as benchwork, I accomplished a piddly 32″ – the upper deck between McCarthy and the Kennicott River crossing.  The electrical took longer than expected, and I needed to accomplish some design work  for Iowa Scaled for a new optical track detector we’re working on.

My goal for the rest of the week is the rest of the east wall (McCarthy to Kuskulana on the upper and Cordova to Eyak on the lower) and – if the stars align – the rest of the wall framing and clean up some of the random junk in the way of progress.  We’ll see what actually happens.
